Local Integrals of Motion (LIOMs)

Here we show how to use PauliStrings.jl to construct the local integrals of motion in the 1D XXZ model. We will focus on reproducing Fig. 1b and Fig. 2b from Pawłowski 2025, where this algorithm was first introduced.

Start by setting up PauliStrings:

using PauliStrings
import PauliStrings as ps

Then we define the XXZ Hamiltonian $H =\sum_i \frac{J}{2}\left(S^+_i S^-_{i+1} + S^-_i S^+_{i+1}\right) + \Delta S^z_i S^z_{i+1}$ on a 1D chain with periodic boundary conditions:

function XXZ(N, J, Δ)
    H = ps.Operator(N)
    i = 1
    H += J / 2, "S+", i, "S-", mod1(i + 1, N)
    H += J / 2, "S-", i, "S+", mod1(i + 1, N)
    H += J * Δ, "Sz", i, "Sz", mod1(i + 1, N)
    return ps.OperatorTS1D(H, full=false)
end

XXZ (generic function with 1 method)

General Pauli basis

As a first example, we construct the LIOMs using the full Pauli basis supported on up to $k$ sites. It is constructed from all possible Pauli strings acting on up to $M$ contiguous sites, translated across the entire lattice. Each Pauli string is composed of the operators X, Y, Z, and the identity 1.

M = 4
L = 2 * M + 1
J = 1.0
Δ = 0.5

H = XXZ(L, J, Δ)
support = ps.k_local_basis_1d(L, M; translational_symmetry=true)
evals, evecs, lioms = ps.lioms(H, support; threshold=1e-10)

# 4 zero eigenvalues, corresponding to 4 LIOMs on support up to k=4 sites
@show evals

4-element Vector{Float64}:
 -8.899062814317216e-18
  7.372533162408515e-18
  3.8412014855503225e-17
  4.163336342344337e-17

Using the general Pauli basis on up to $k$ sites, we find exactly k LIOMs as expected.

Symmetry adapted Pauli basis

We can improve the efficiency of the LIOMs construction by using a symmetry-adapted operator basis.

First, we notice that the XXZ Hamiltonian conserves the total magnetization $S^z_\mathrm{tot} = \sum_i S^z_i$. Therefore, we can expect the LIOMs to also commute with $S^z_\mathrm{tot}$, and so we include only such commuting Pauli strings in our basis. This is most easily done by using the raising and lowering operators S+ and S-, along with Sz and the identity 1 as the building blocks of the Pauli strings.
Then, we can split the operator basis into sectors with well-defined behavior under spin-flip symmetry, defined by the operator $F = \prod_i X_i$, $F^\dagger O F = \pm O$.
And finally, since the XXZ hamiltonian is time-reversal symmetric, we can also split the operator basis into sectors with real matrix elements, $O^s_R = O^s + {O^s}^{\dagger}$, and imaginary matrix elements, $O^s_I = i(O^s - {O^s}^\dagger)$.

support = ps.symmetry_adapted_k_local_basis_1d(
    L,
    M;
    time_reversal=:real,
    spin_flip=:even,
    conserve_magnetization=:yes,
    translational_symmetry=true,
)

evals, evecs, ops = ps.lioms(
    H,
    support;
    threshold=1e-10,
)

# 2 zero eigenvalues, corresponding to 2 LIOMs on support up to M=4 sites
@show evals

2-element Vector{Float64}:
 -1.493792259327538e-17
  8.971851441563408e-18

Using the symmetry-adapted Pauli basis on up to $M$ sites, in the real-even sector, we find exactly $\lfloor M/2 \rfloor$ LIOMs. Remaining $\lceil M/2 \rceil$ LIOMs can be found in the imaginary-even sector.

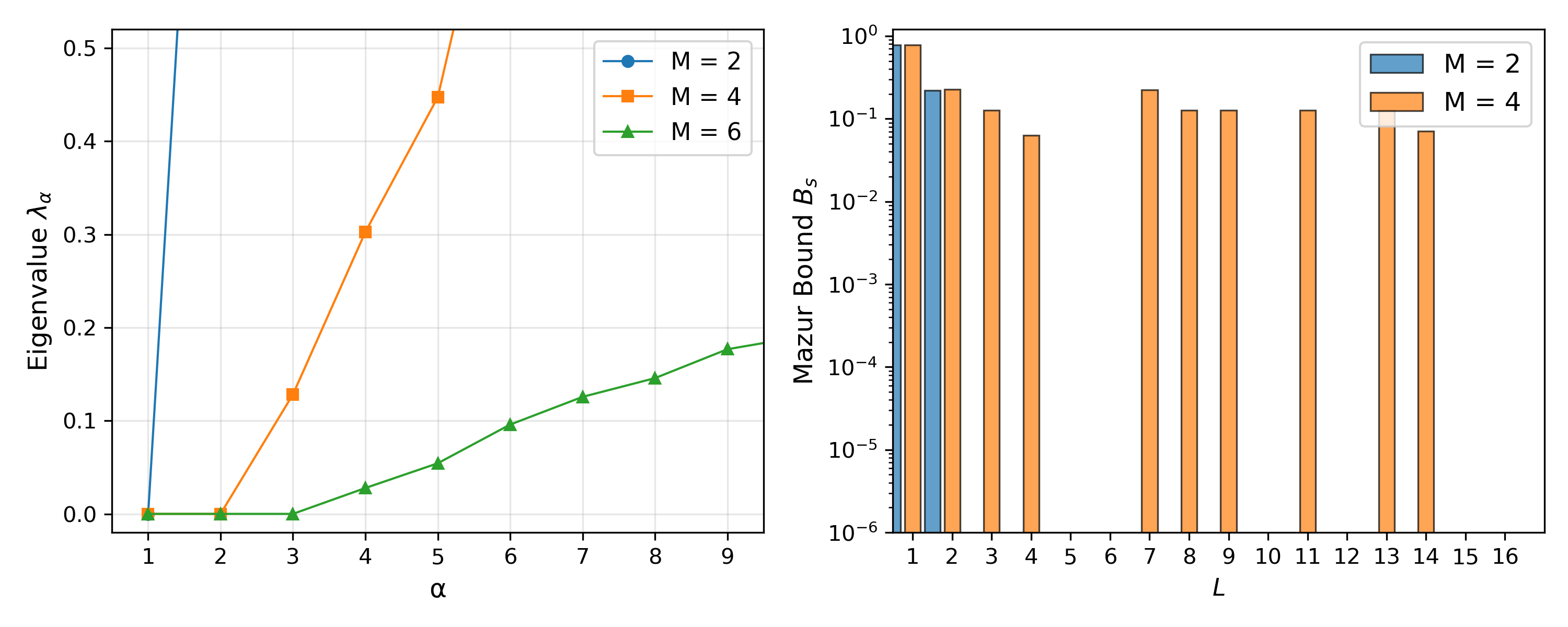

Repeating the above for $M \in [2, 4, 6]$, we reproduce Fig. 1b and 2b:

plot

Second panel shows the composition of the $\lambda=0$ LIOMs subspace, in terms of projections on the basis operators.
